Baysek C-170 Rotary Anvil Die Cutter

Name: Baysek C-170 Rotary Anvil Die Cutter
Brand: Baysek Solutions

Baysek Solutionsnew

Incorporated in 1995 in the village of Amherst, WI, U.S.A., Baysek Solutions produces proven and predictable state-of-the-art rotary anvil-flatbed die cutters designed to give customers excellent flexibility and a quick return on investment. The Nick-Free, Multiple-Out, Baysek die-cutting method is designed to conquer difficult jobs that traditional rotary and flatbed die cutters struggle or fail to efficiently accomplish. 55" x 67" Fully Automatic Rotary Anvil - Flat Die Cutter

Request a Quote Contact Us

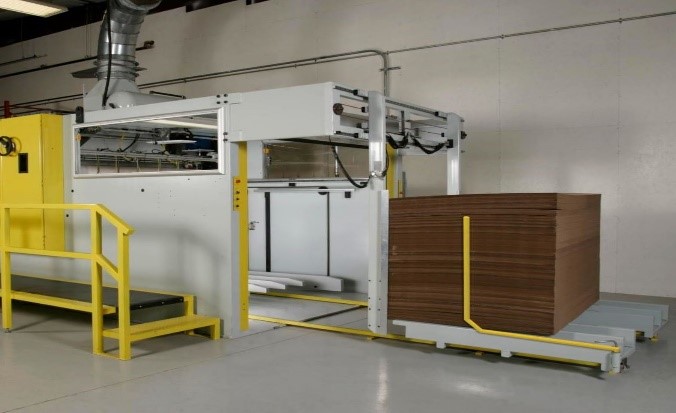

Baysek C-170 Die Cutter

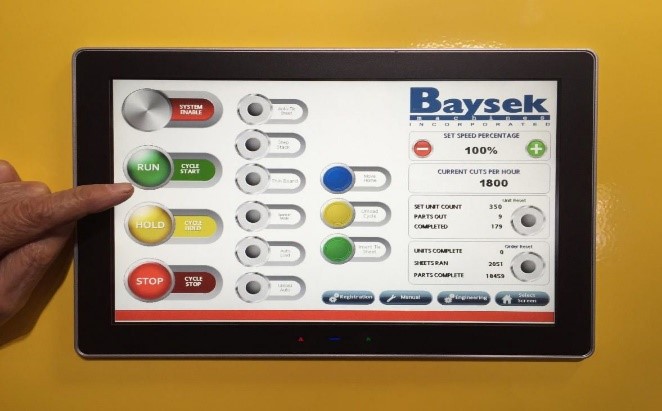

The servo-driven C-170 die cutter offers a large die format with quick setup and no required stripping tools. Simple one-out to complex multi-out pieces, up to 60 individual pieces per cycle, are shear cut and automatically stripped of waste. Controlled by a single operator at the touch of a user-friendly computerized screen, unnecessary additional manual labor is eliminated. Clean, accurately counted, and neatly stacked finished units are ready for shipping preparation upon exiting the machine, load after load.

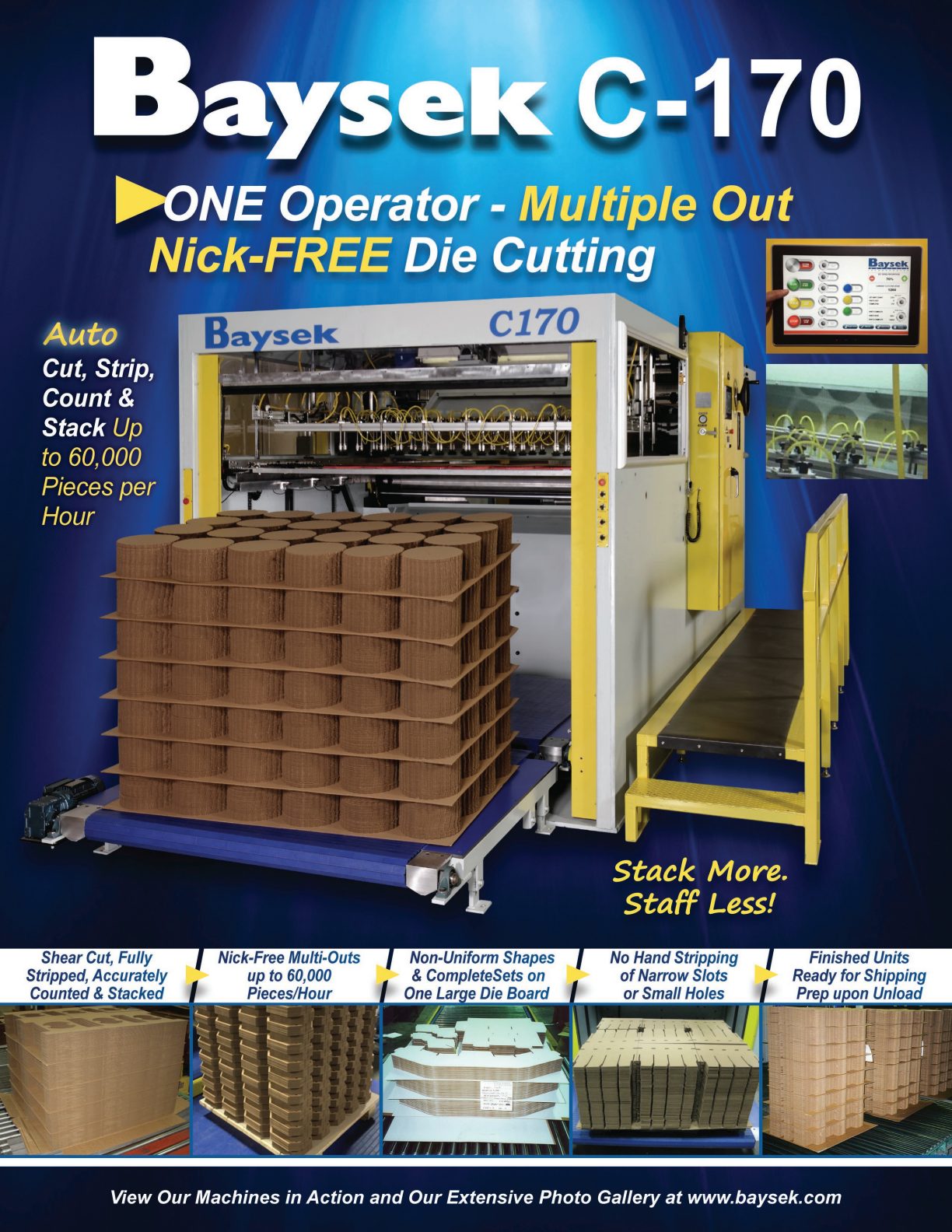

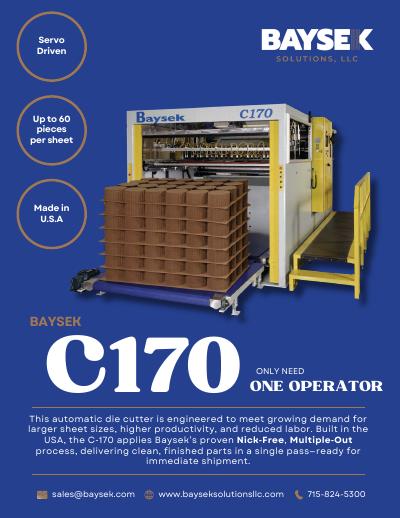

PDF · 3859 KB Baysek C170 Literature 2019

Important Features:

Quick Setup & No Make Ready
One Operator
Solid Board Single-Face F-Flute through Double Wall

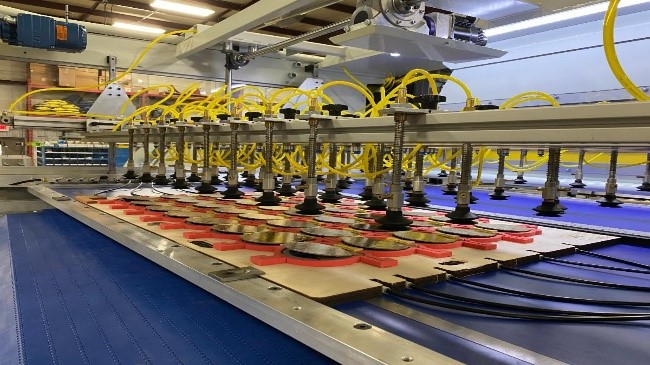

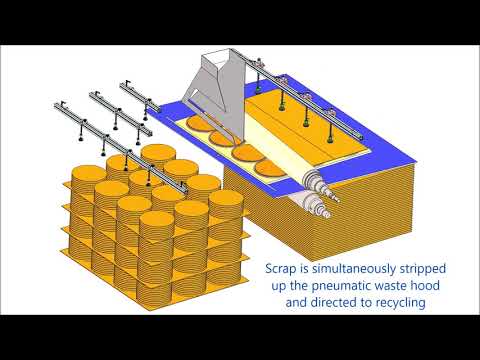

Fully Stripped Waste with Vacuum Removal
Nick-Free Multi-Out Stacking up to 60,000 pieces per hour
Automatic Tie Sheet & Step Stack Setting
Shear Cut – No Angel Hair
Servo Drive Control System
Remote Online Machine Diagnostics
No Bundle Breaker Required to Achieve Product Separation
No special tooling needed

Optional Features:

Extended Out Feed Conveyor
Conveyor Infeed System
Solid/Thin Board Assist
Reverse Rotary Brush
Single Face components
Video Camera Monitoring

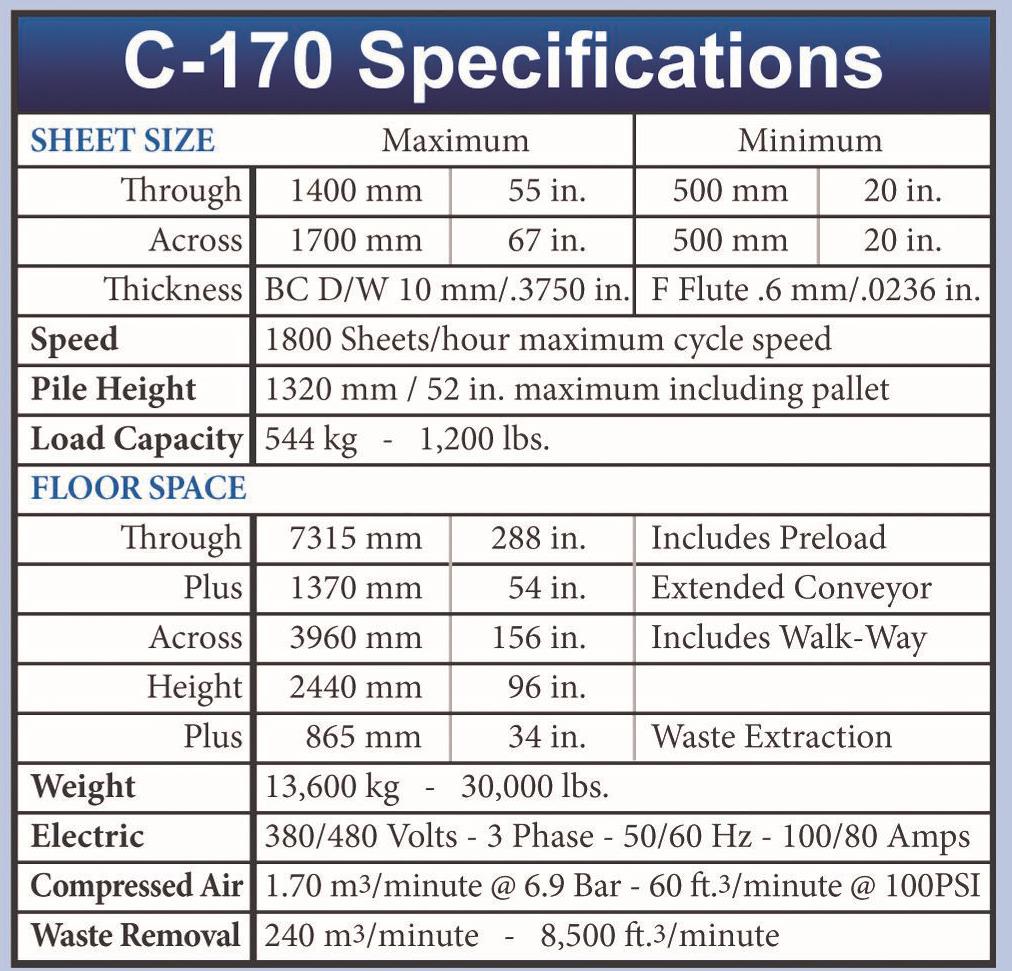

Specifications:

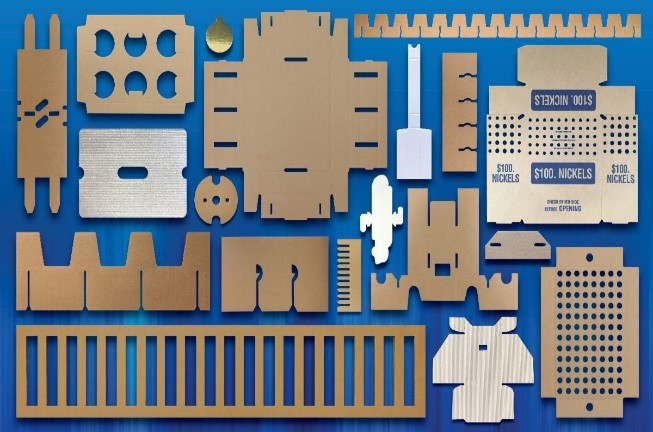

Nick-Free, Multiple-Out, Complex Die Cutting

Increase production and quality while decreasing costly manual labor. Shear cut, fully strip waste, accurately count and neatly stack complex partitions with one operator via the Baysek C-170 die cutter. Clean "Nick-Free" finished pieces exit the machine ready for shipping prep or to enter partition assemblers with ease.Stack More...Staff Less.

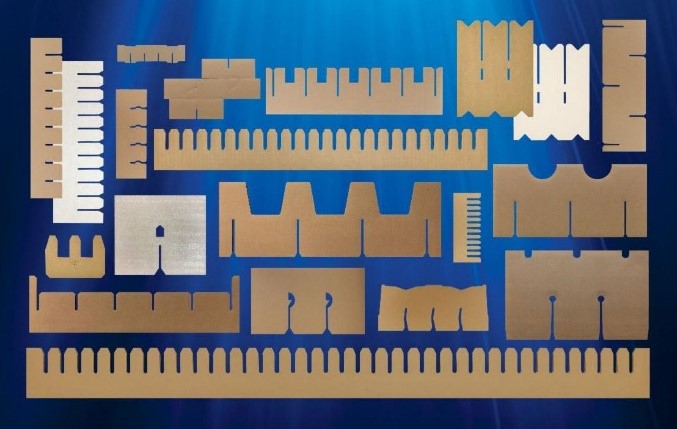

Die Cutting Partitions

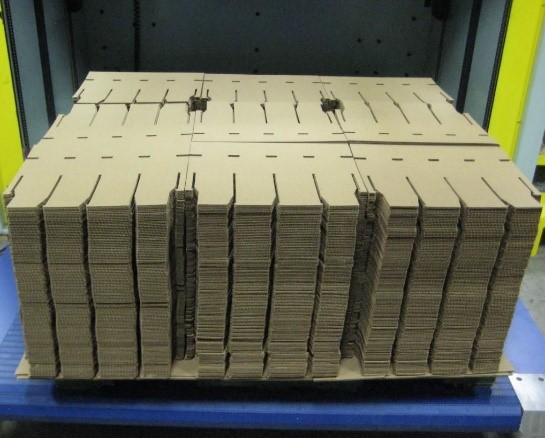

Large, 9 Out, Narrow Slots & Small Waste, 1 Full Set

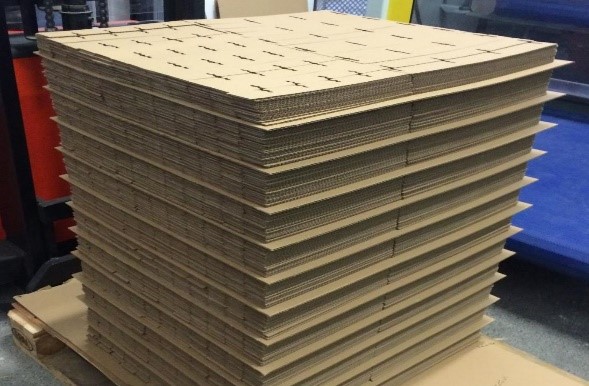

Small, 24 Out, B-Flute, 3 Complete Partition Sets

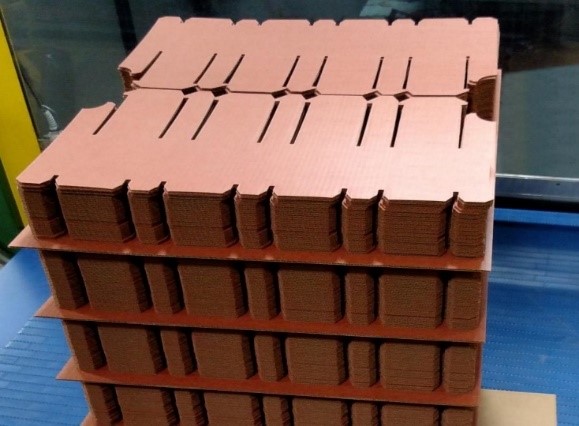

Large, Intricate, 2 Out, Coated Board Partitions

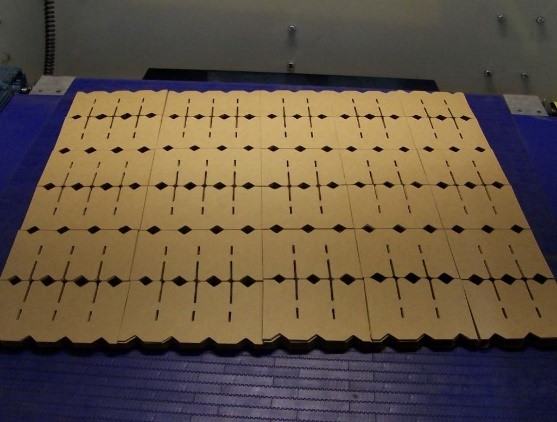

Medium, 30 out 6 Complete Partition Sets

*Available in specific countries; please consult with Goettsch International for availability.

Sigma X control platform

Current Baysek C Series machines are built on the Yaskawa Sigma-X servo platform. The 26-bit encoder gives far finer positioning and less speed ripple, while a 3.5 kHz bandwidth and 7,000 rpm maximum motor speed shorten acceleration and settling time — the machine reaches its cycle sooner and holds it more consistently.

The drives carry embedded acceleration sensors that track vibration, thermal headroom and power draw, and run that analysis themselves, so maintenance can be planned before a failure stops production. Sigma-LINK II network architecture routes data through a single hub, isolating encoder lines from electrical noise and vibration, and the amplifiers tolerate cabinet temperatures to 55 °C without auxiliary cooling.
